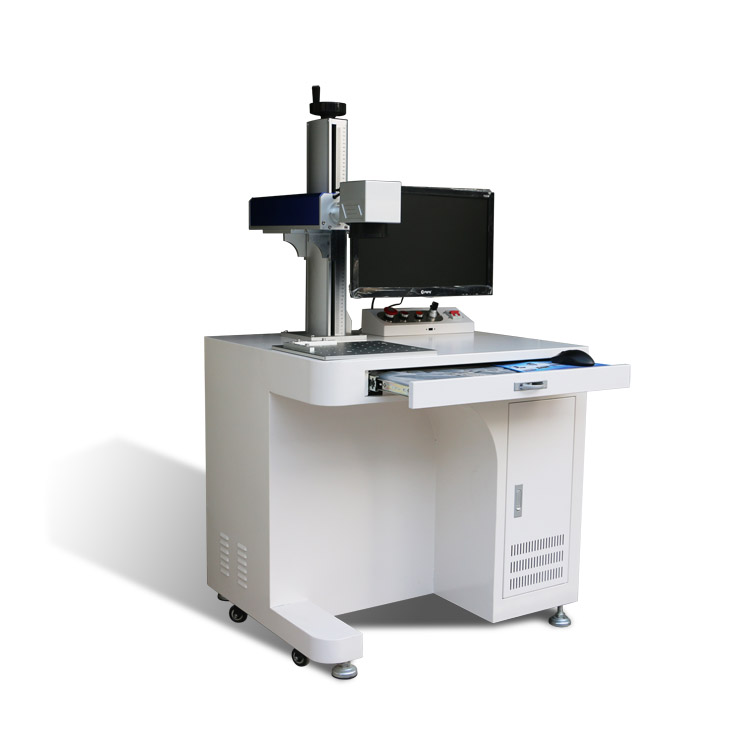

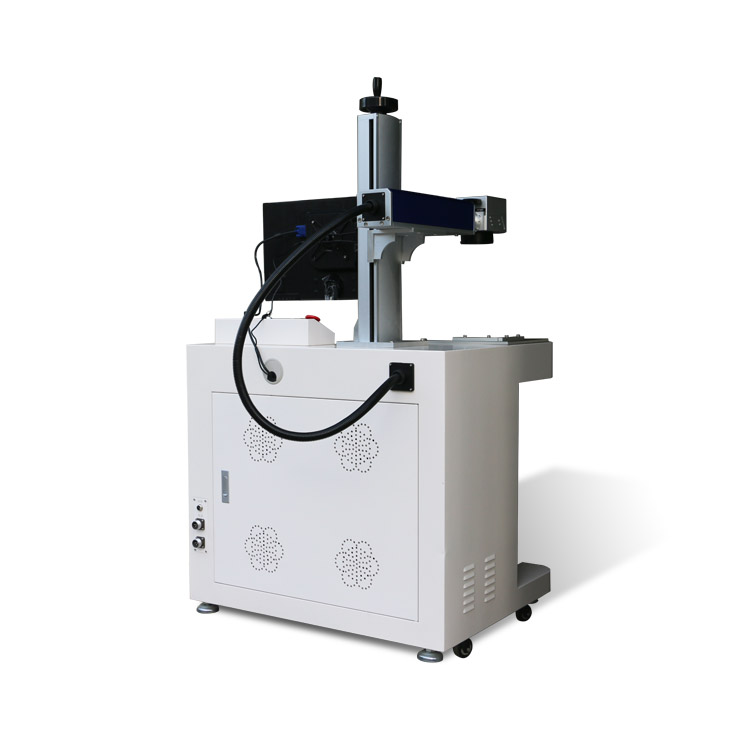

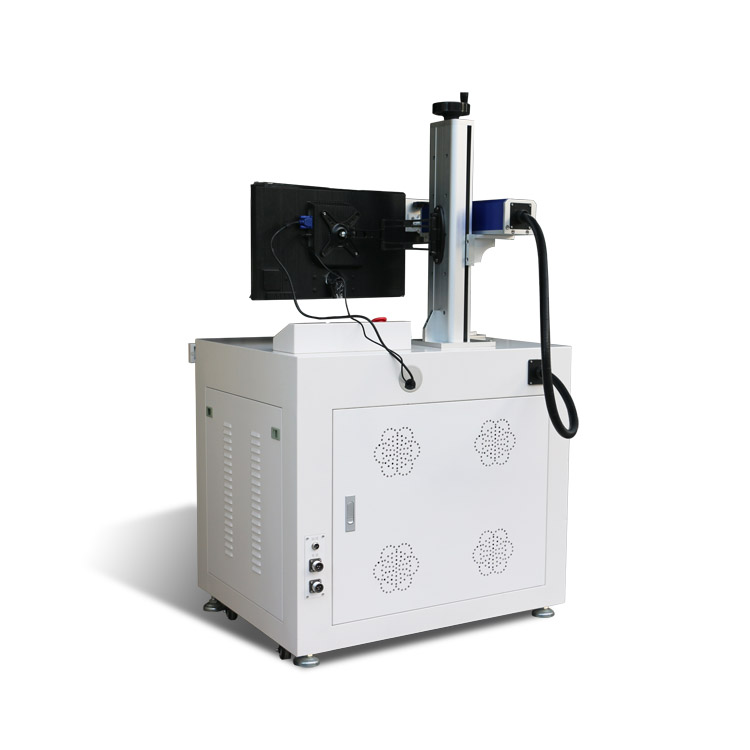

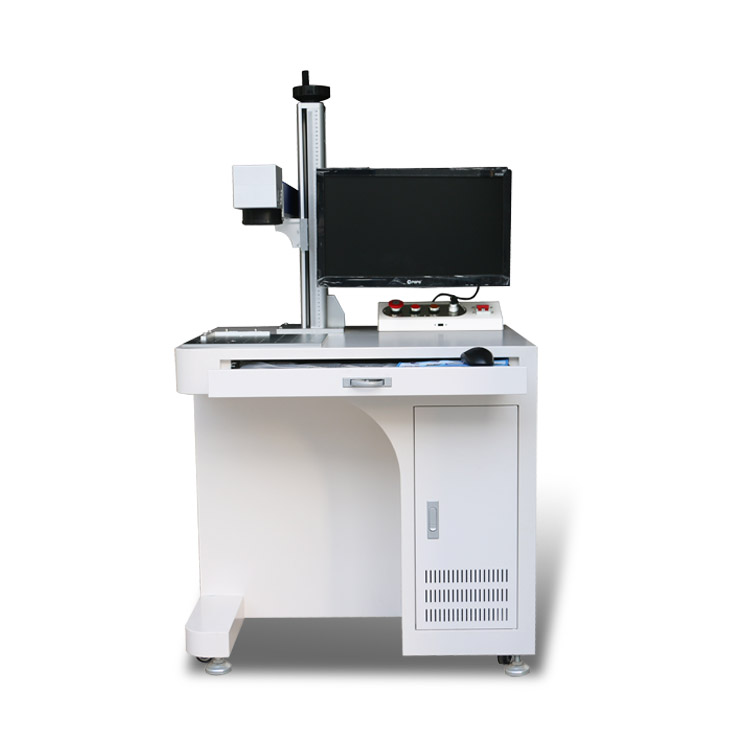

desktop shape fiber laser marking machine
desktop shape fiber laser marking machine

Fiber laser marking machines or as some call them lasers for engraving, marking provide the user with very fast and accurate marking as they allow the cutting of letters in the size of 0.15mm. Fiber marking laser is mainly used for marking on all metallic materials as well as some non-metallic materials such as: clear acrylic glass, leather, wood, plastic, etc


desktop shape fiber laser marking machine
desktop shape fiber laser marking machine
desktop shape fiber laser marking machine
desktop shape fiber laser marking machine
desktop shape fiber laser marking machine
Product features

1.        .Laser source:

RAYCUS/MAX/JPT/IPG, 3 years warranty.

Radio frequency tube laser source with high laser energy, fine laser path, low fault rate.



2.        F-Theta lens

F-Theta lens with working area 110*110mm,175*175mm,200*200mm,300*300mm for optional.
if working area smaller, the marking depth by one time is bigger.



3.        Control board

BJJCZ Main board, configured with high precision



4.        Famous brand original EZCAD control softward

Control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text, bar code, two dimensional code processing



5.       High-speed digital galvanometer scanning system

Sino- galvanometer scanning head adopts scanning laboratory technology, with fast marking speed, digital signal, high precision



6.       Lifting handle

High quality and stable

Adjust the up and down for different height material marking



7.       Power supply

meanwell power supply for galvo head and control board to ensure machine work stably



8.      Red Light Indicator

Adopt red light indicator to show the laser path since invisible laser beam



9.      Control Button

Humanized control system, easy to operate, safe and convenient, dust proof design



10.   Working table

Aluminum working table. Flat and smooth, compact structure, flexible processing direction adjustable control.



11.   2D/3D working Table

The working table can be adjusted as to and for up and down, front and behind.

Total 6 direction moving. User can adjust the direction as per actual request, it is optional parts.



12.   Rotary device (optional)

The rotating device is suitable for various round objects, such as rings, glass bottles, etc.The speed can be controlled by the computer liberalization.




Product parameters

Specification

Fiber marking   machine


Type of model

HT-20, HT-30, HT -50, HT-60,HT-70,HT-80, HT -100,

Output power

20W / 30W / 50W  / 60W/70W/80W/100W

Cutting   thickness

up to 0,3 mm /   up to 0,5 mm / up to 1,2 mm/ up to 1,3 mm

Cooling

air cooling

Type of laser   source

Fiber laser:  RAYCUS/MAX/JPT/IPG

Wavelenght of   laser beam

1064 nm

Frequency

20Hz-200kHz

Max.marking sped

7000 mm / s

Working area   depends on the lense

170 × 170 mm /   option 50 × 50 mm, 70 × 70 mm, 100 × 100 mm, 200 × 200 mm, 300 × 300mm

Min. engraving   size

0,15 mm

Operating   environment temperature

5°C - 35°C

Operation   voltage

AC230 +/- 10% 50   Hz

Accuracy

<0,01 mm

Computer   interface

USB

Controler /   Software

EzCAD

Graphic format   supported

AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG CAD CDR   DWGPCX

Operating   systems

Windows /XP   /Vista /Win7 /Win8 /Win10

Exhausting   System

optional

Dimension of   machine

610 × 600 × 700   mm

Weight of   machine

40 kg

Other included   items/parts

laser pointer

Optional items

rotary device,   special rotary for rings, 2D table, material holder
