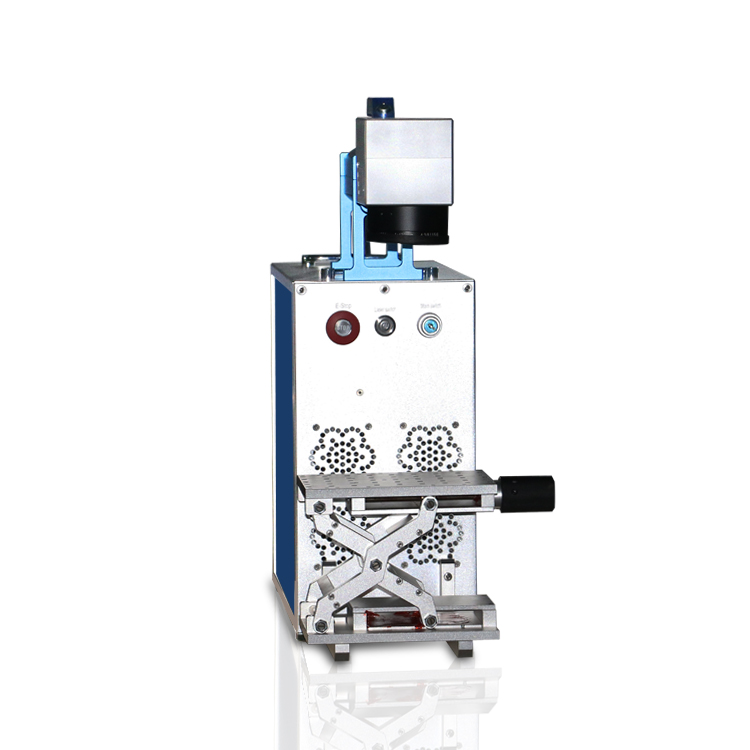

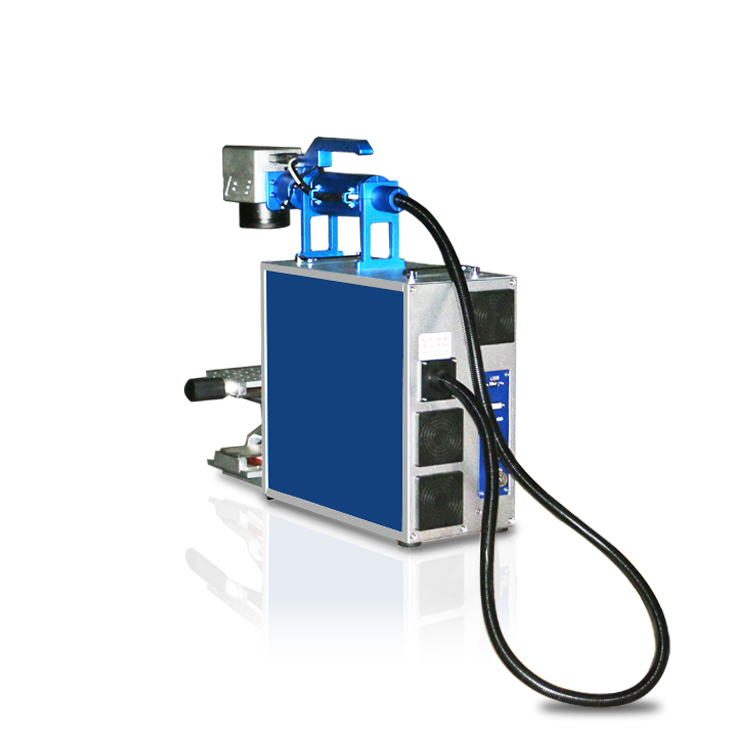

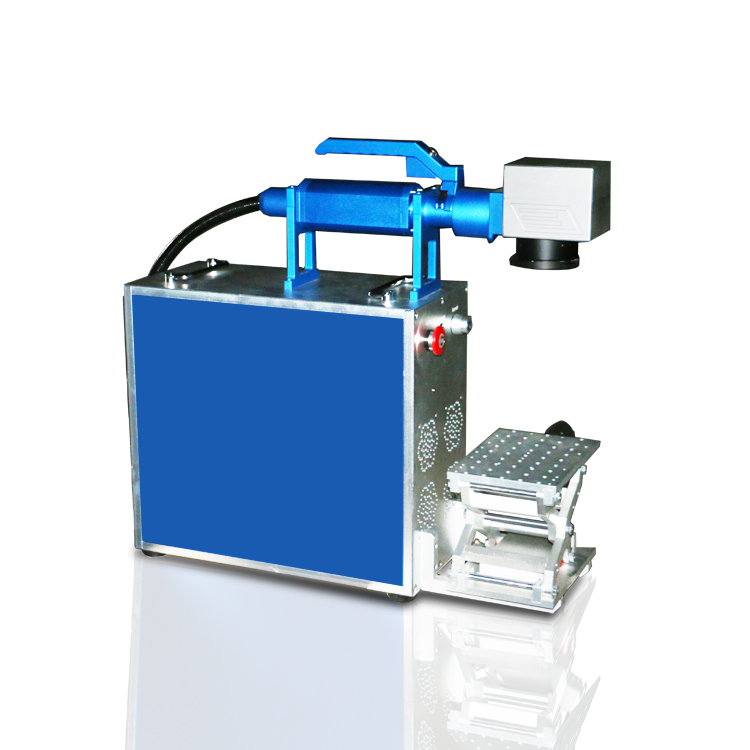

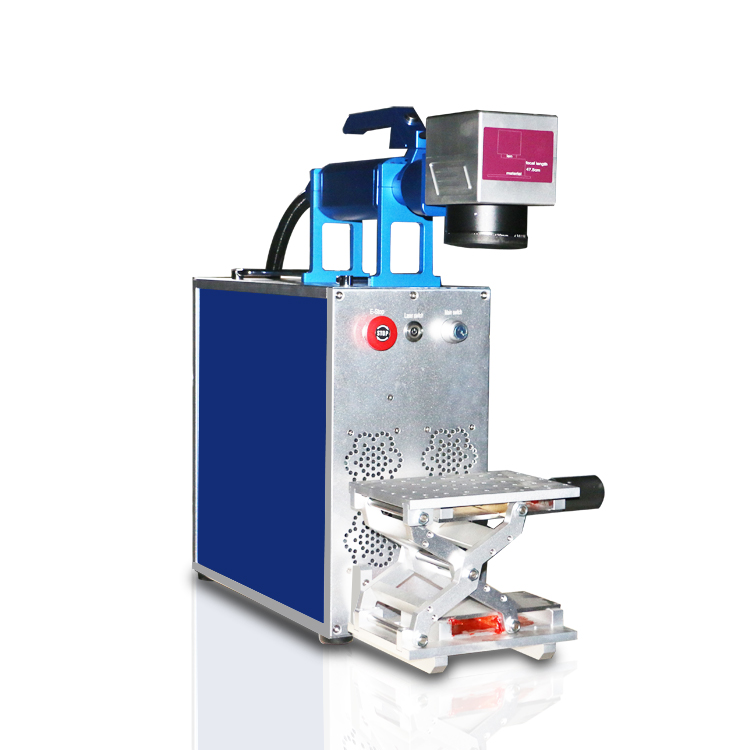

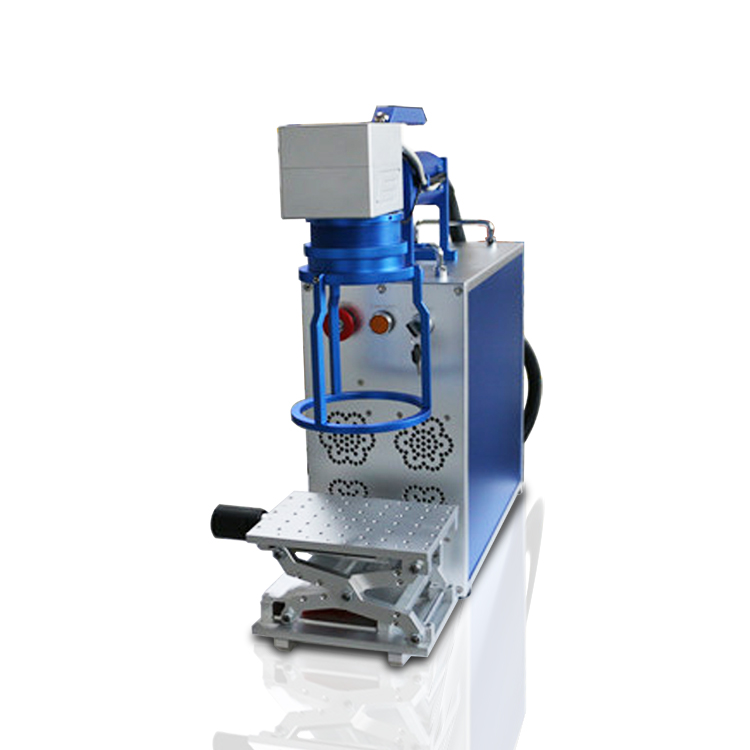

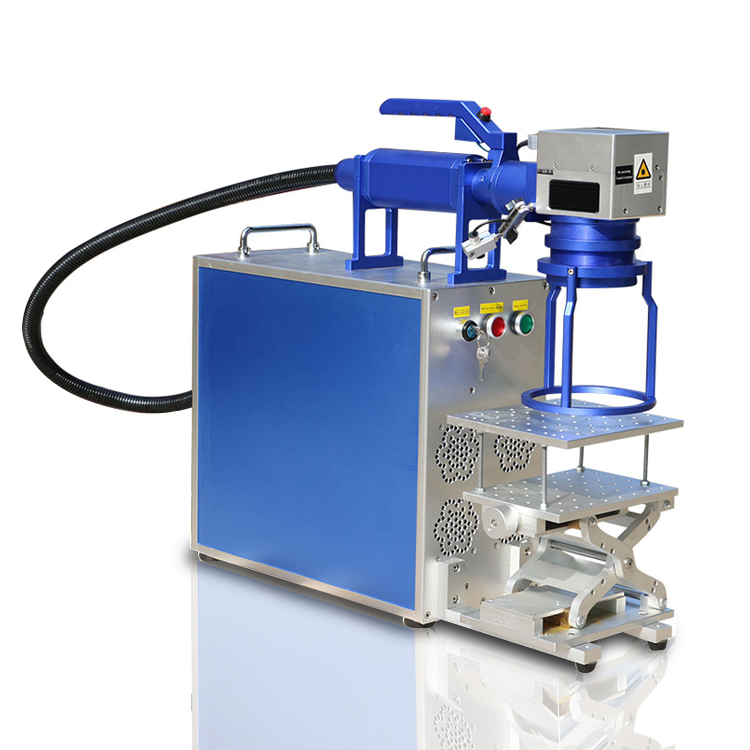

HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine


EZCAD Controller& Software (Original)

Up-Down High-Quality Aluminum Worktable

Double Red Dot for Adjust The Focus

Foot Switch

Working Size: 100mm*100mm,170*170mm, 200*200mm,300*300mm (Optional)

Laser Power:20W 30w 50w 100w (Optional)

Laser Source: Raycus/MAX/JPT (Optional)

100% Aluminum Machine Cover

High Quality Scanning Head and Lens

Stable Laser Machine Body


HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
HT-20w 30w 50w 100w Handheld Shape Fiber Laser Marking Machine
Product features

Fiber Laser Can Be Used For ALL Kinds Of Metal And Some Non Metal Materials, Like PVC/Plastic/Tile/Leather/Color Wood.....Glass And Crystal And White Paper Can Not Work For Fiber. We Warranty That Machine For 3 Years. This Machine Is Air Cooling, No Need Maintenance, No Need Other Parts, No Consumable Parts, Fast Speed and High Precision, And Life Can Be 100,000 Working Hours.


Fiber laser marking machines or as some call them lasers for engraving, marking provide the user with very fast and accurate marking as they allow the cutting of letters in the size of 0.15mm. Fiber marking laser is mainly used for marking on all metallic materials as well as some non-metallic materials such as: clear acrylic glass, leather, wood, plastic, etc






Product parameters

Effective Working Area

100*100mm

Laser Power

20W

Worktable

up-down high-quality aluminum worktable

Wave Length

1064nm

Laser Frequency

20~100KHz

Computer System

WINDOWS XP/Win7/8/10 32/64bits

Minimum Character

0.15mm

Minimum Linear Width

0.01mm

Cooling way

Air Cooling

Maxi Marking Speed

7000mm/s

Data Transfer:

USB2.0 transmission

Control System

EZCAD Offline Controller

Graphic Format Supported:

AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Compatible Software

CorelDraw, AutoCAD,Adobe Illustrator,Cadian

Total Power

500W (AC220V 50Hz /AC110V 50Hz)

Package Weight/dimension

50KG

Package Size

790mm×400mm×760mm
