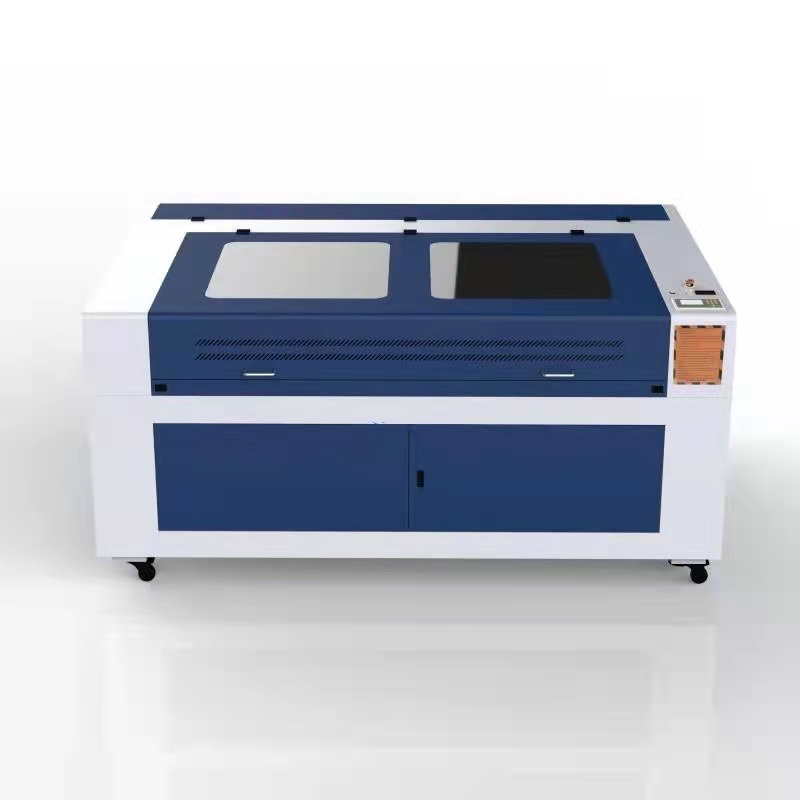

HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine

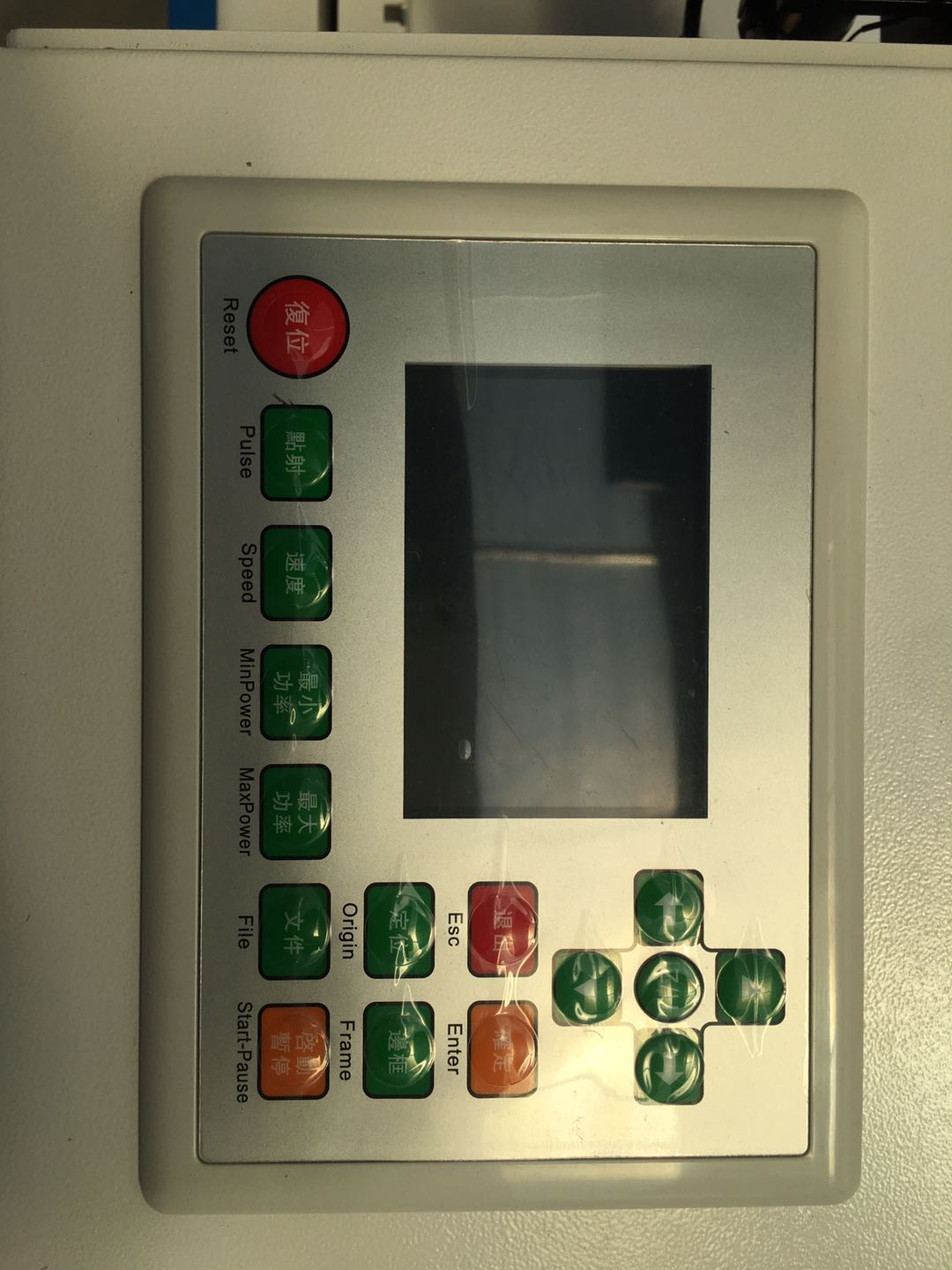

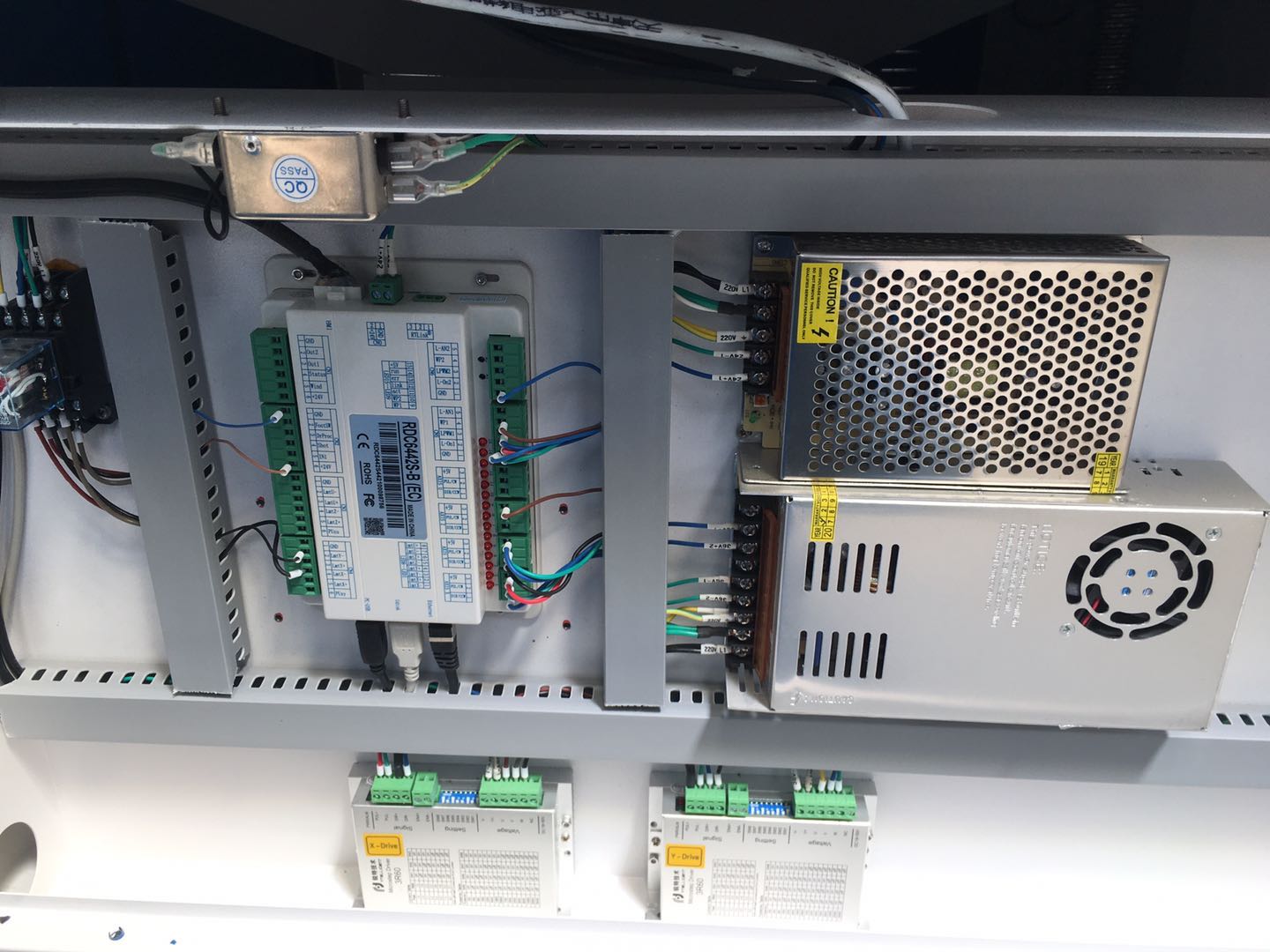

1) RD6442C DSP Controller

2) Leadshine Step Motor And Driver

3) Both Aluminum Blade And Honey Comb Table

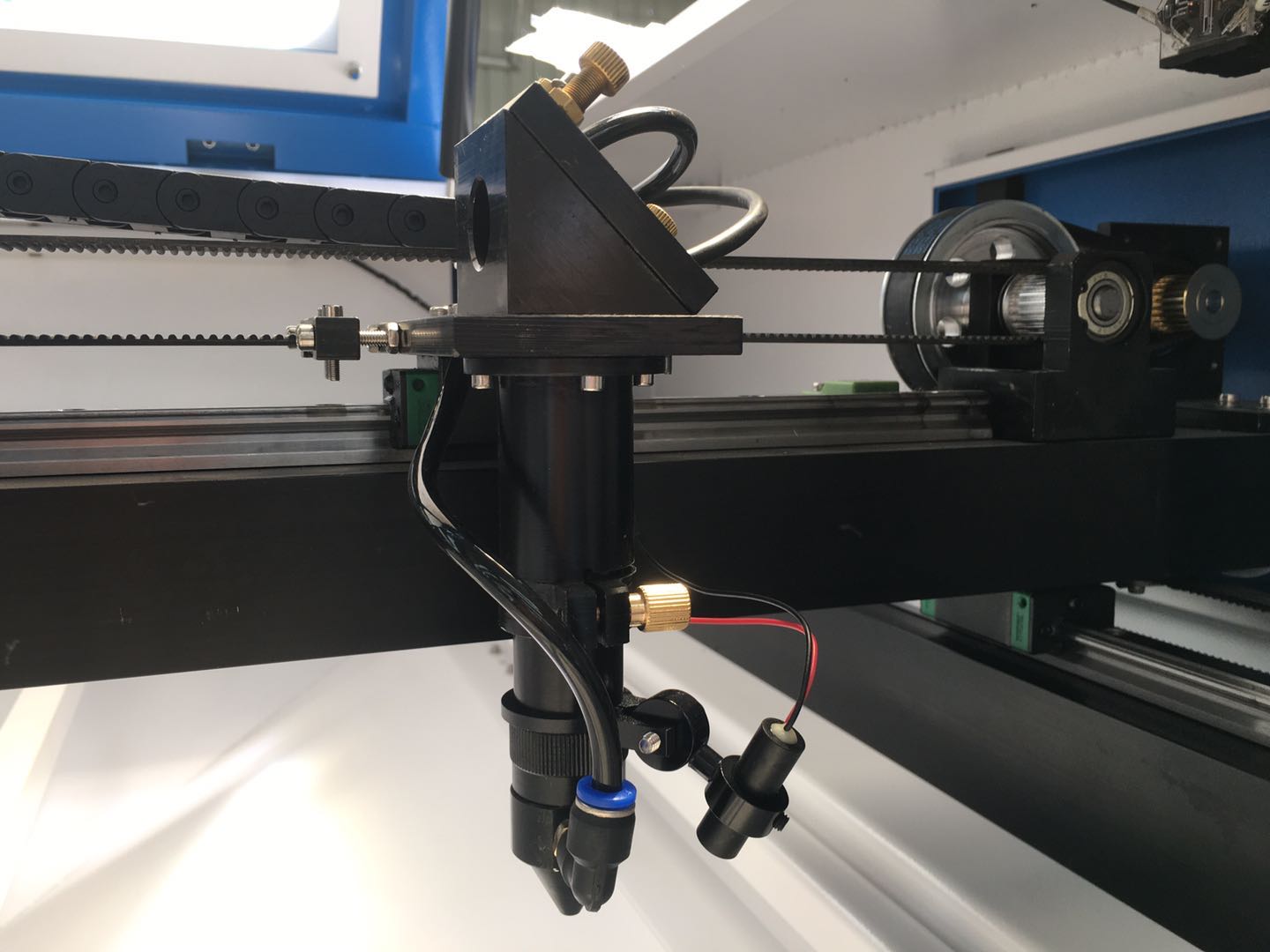

4) Electric Up-Down Working Table And Adjustable Laser Head

5) Front-Back Trans Through Designing

6) 3M Timing Wide Belt

7) Hiwin Inner Linear Guide Rail

8)Drawer Designing

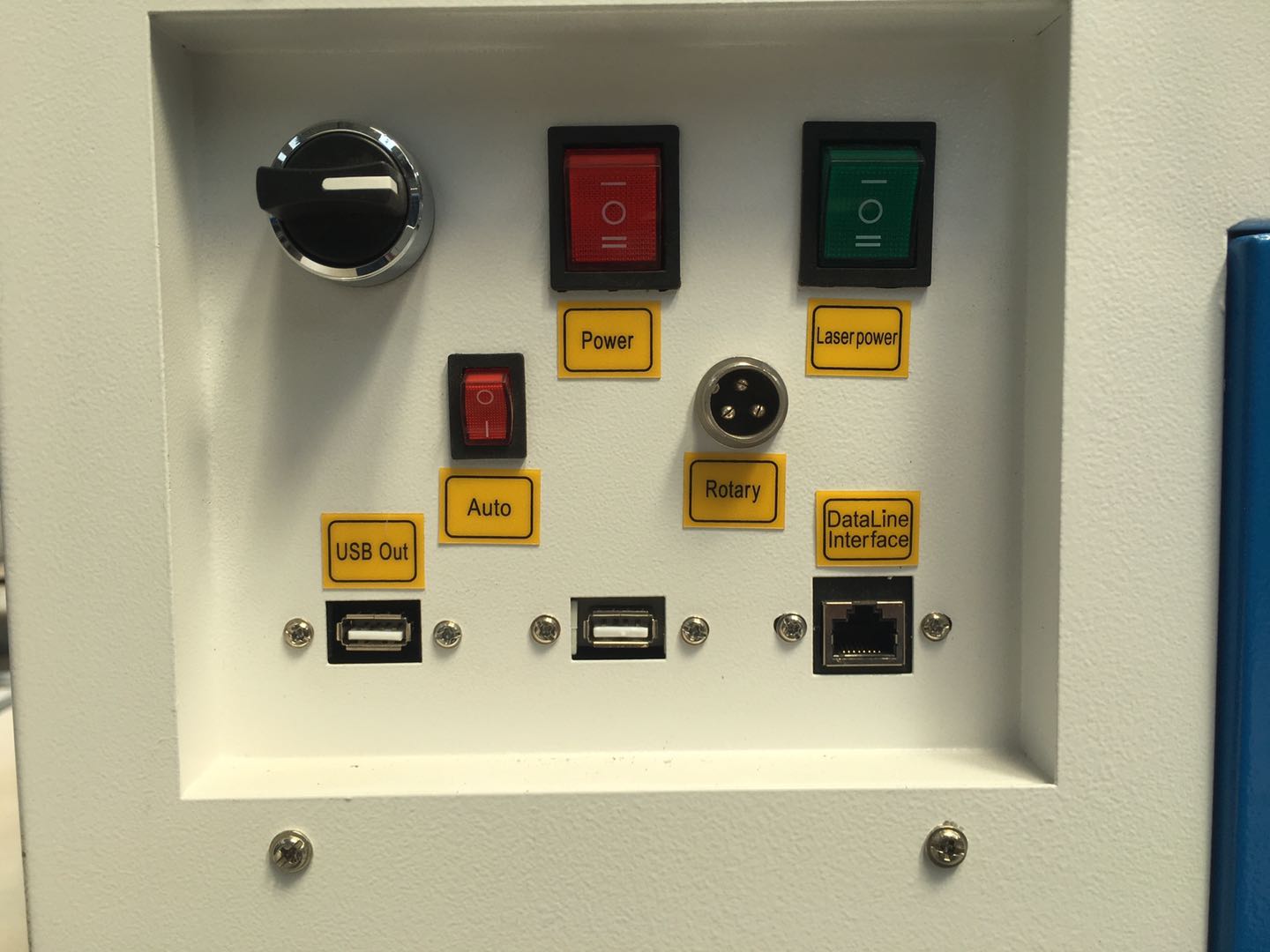

9)Clean And Tidy Sockets.

10)Red Pointer For Positioning

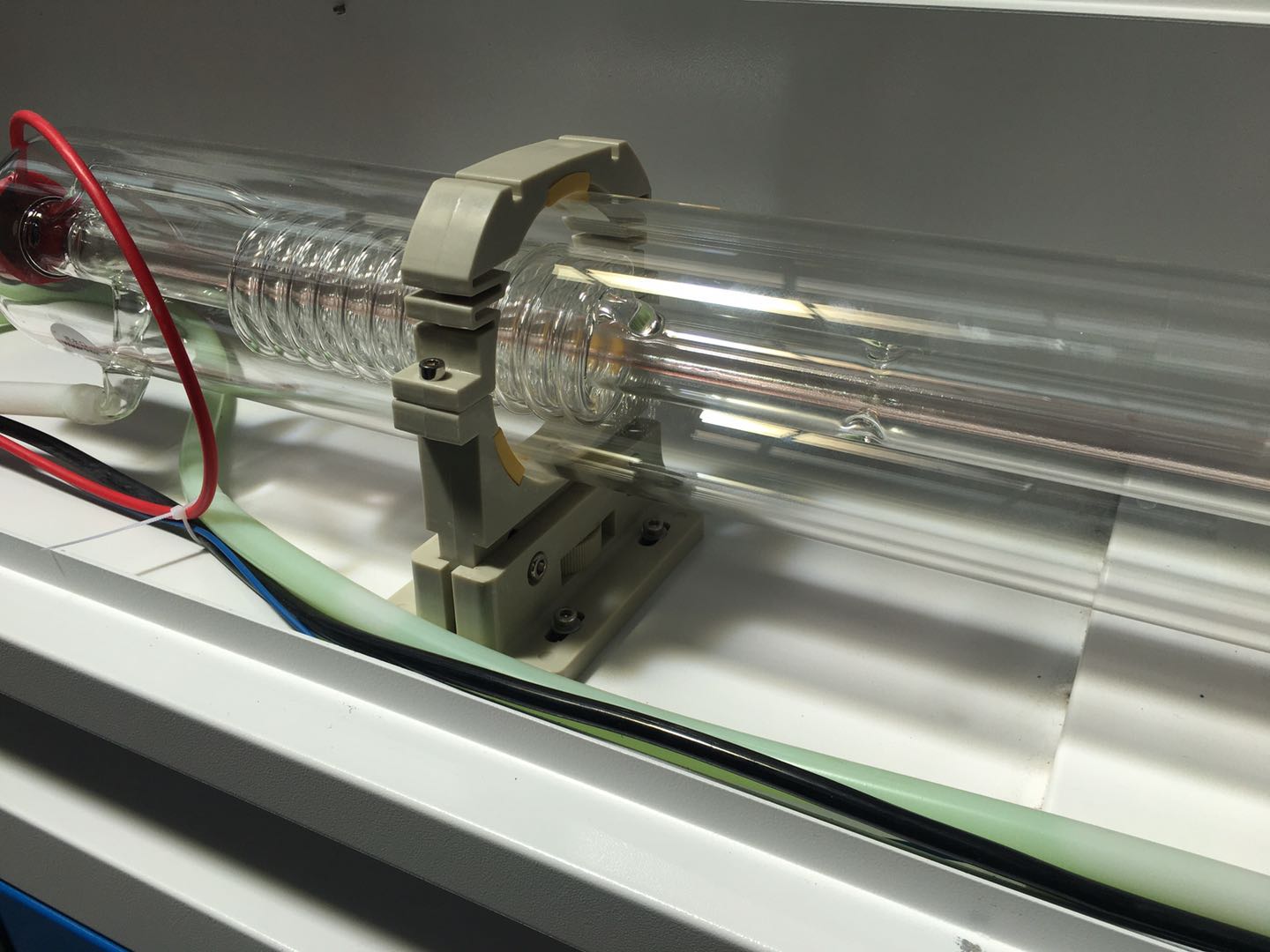

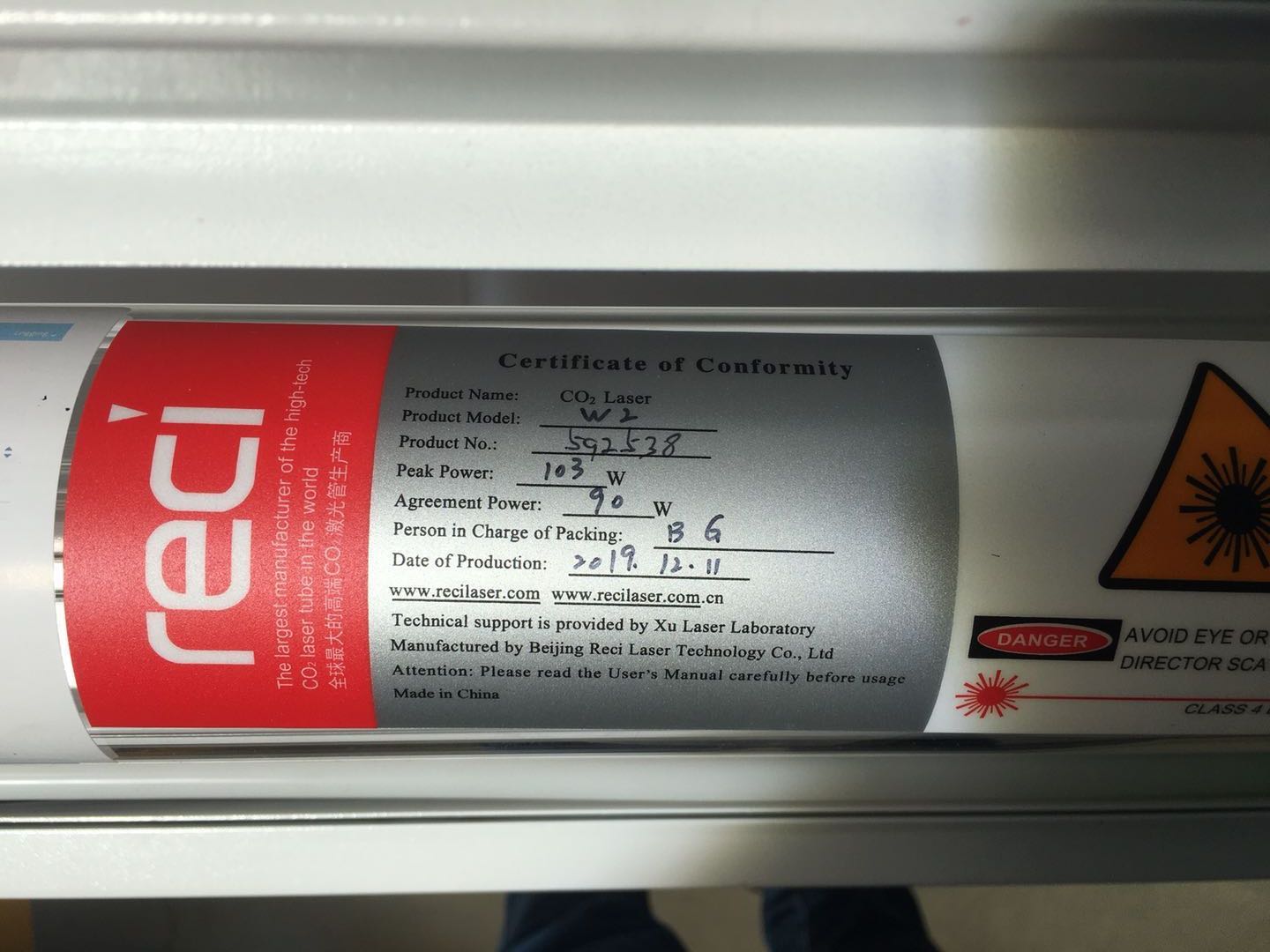

11) EFR/RECI Brand Laser Tube

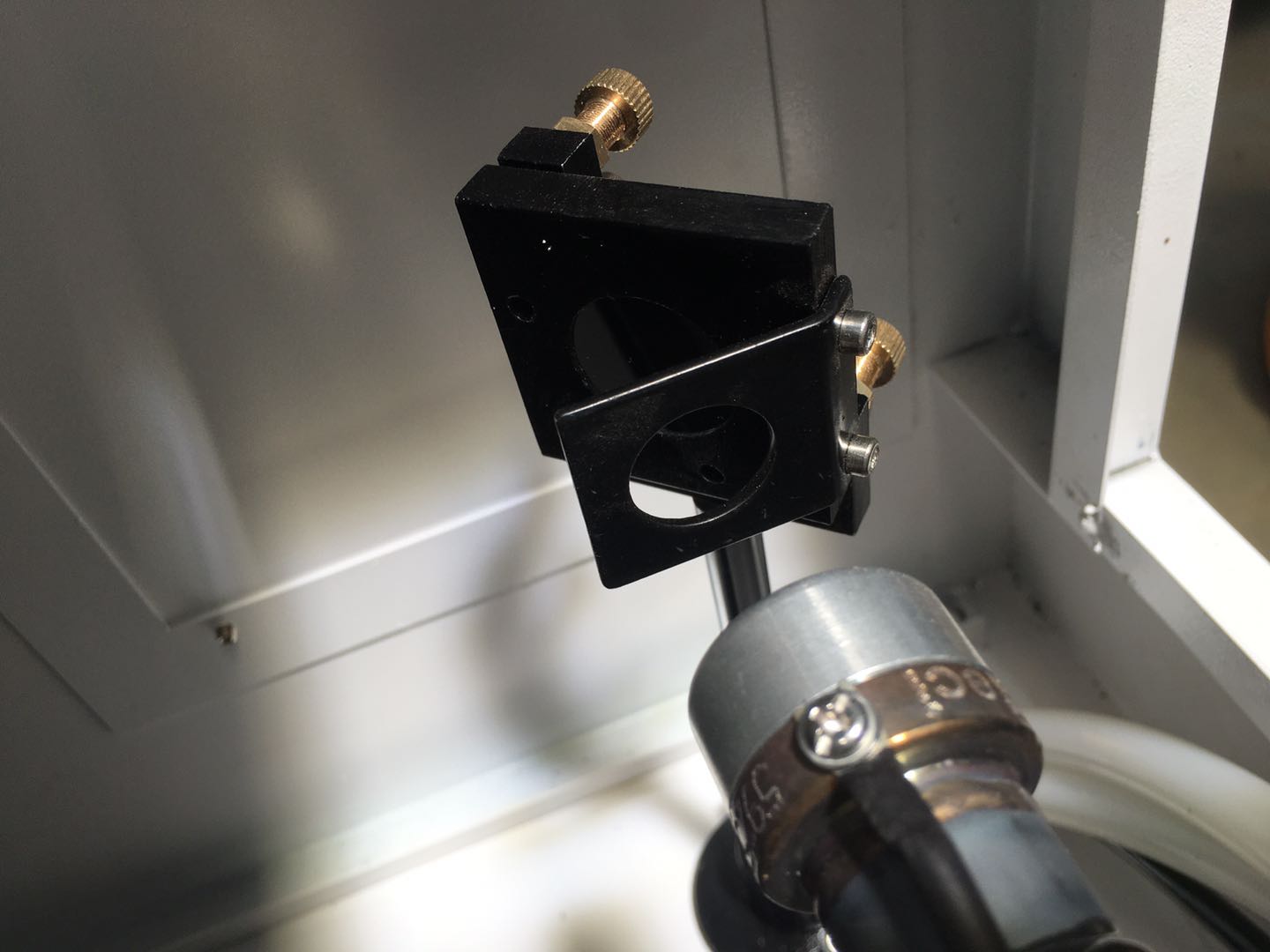

12) Imported Lens And Mirrors.

13) CW5000 Water Chiller

14) Auto Focus



HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
HT-1390 CO2 Laser Engraving And Cutting Machine
Product features

HT-1390 laser engraving machine is mainly used to engrave many kinds of non-metal materials, such as acrylic, bamboo products, cloth, plastic, marble, glass, woods, PVC, CO2 laser engraver can process the plexiglas products, acrylic display panel lenses, wood carving, wood percutaneous flowers, advertising products, crystal characters, packing boxes, mode



Product parameters

Effective Working Area

1300mm*900mm

Laser Power

Reci/EFR   brand laser tube

Laser Type

Glass CO2 Laser Tube

Control System

Ruida Mainboard

Transmitting   Parts

Timing Belt

HIWIN Linear Guide Rail--The Best Made In Taiwan

Drive Type

Leadshine 3-Ph Stepper Driver And Motor--The Best Made In China

Default   Software/Controller

Lasercutengrave / Dsp Control From Leadshine

Max Engraving/Cutting  Speed

0-1000mm/S   0-600mm/S

Positioning   Accuracy

0.01mm

Max. Forming Character

English   1.5*1.5mm

Power Supply

110v Us Plug

Software Supported

Artcut, Coreldraw, Photoshop, Autocad

 Graphic Format Supported

Plt, Dxf, Bmp, Jpg, Gif, Pgn, Tif And So On

Working Table (Default)

Honey-Come And   Aluminum Knife Up-Down Table

Operating Temperature

0-45

     Package   Size/Weight

                      195cm*144cm*131cm/   400kgs

      Delivery   Time

                             7 Days After Get   The Payment

      Payment   Terms:

                      T/T, Western Union , Paypal
