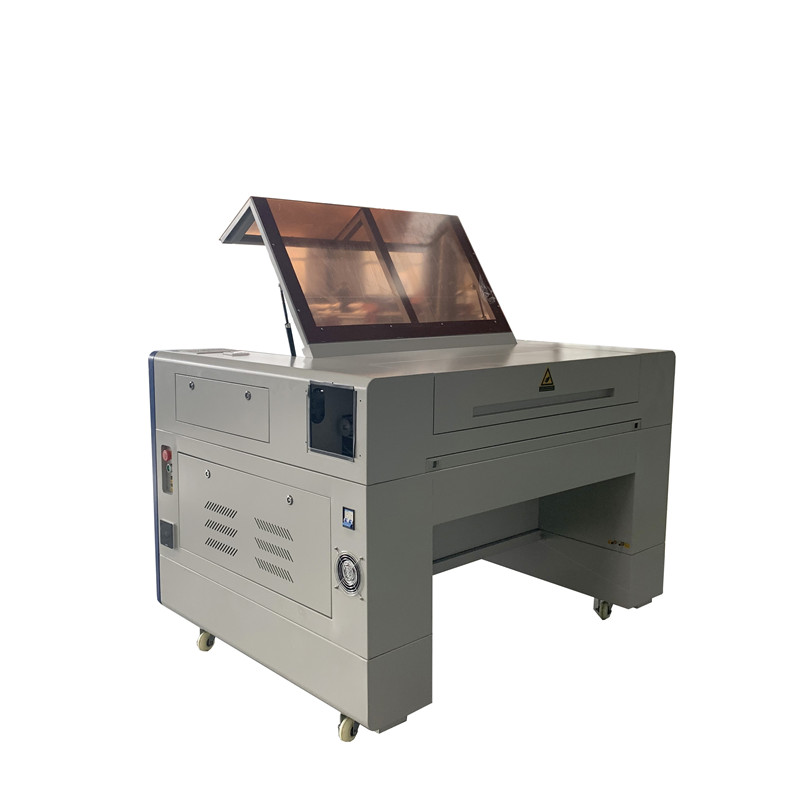

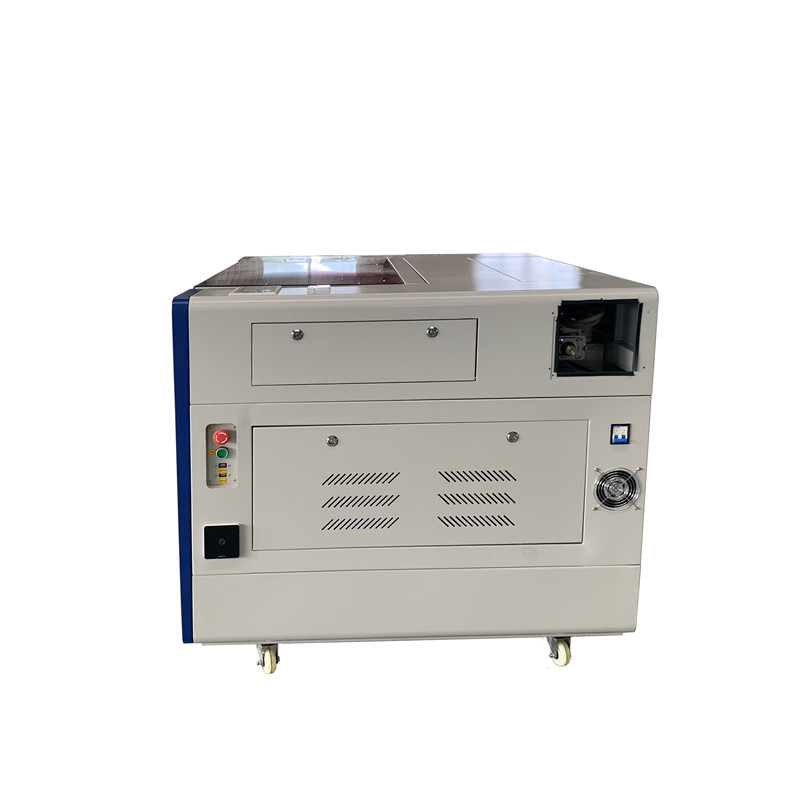

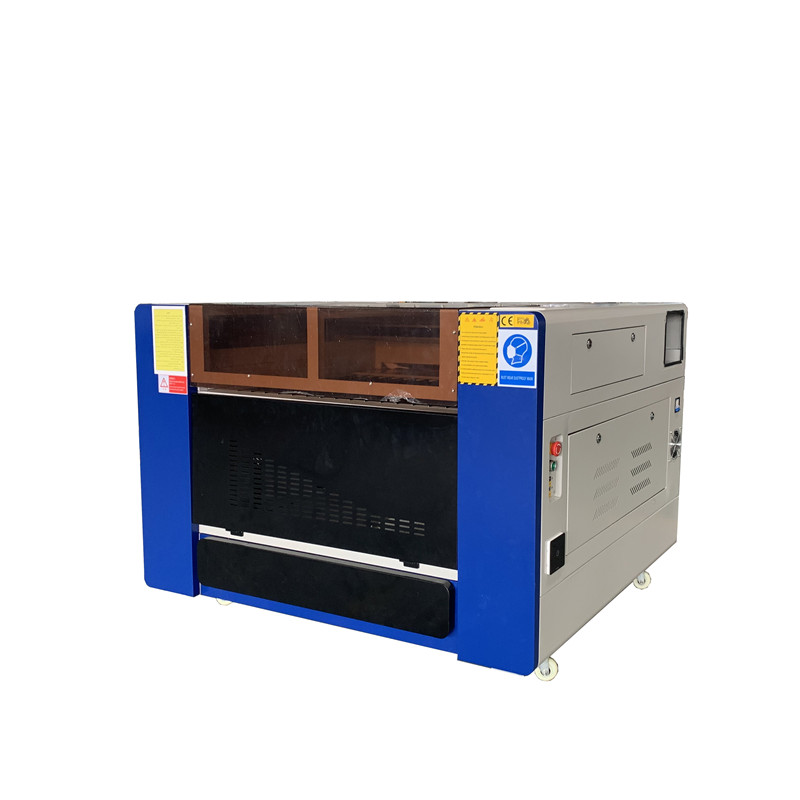

New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine

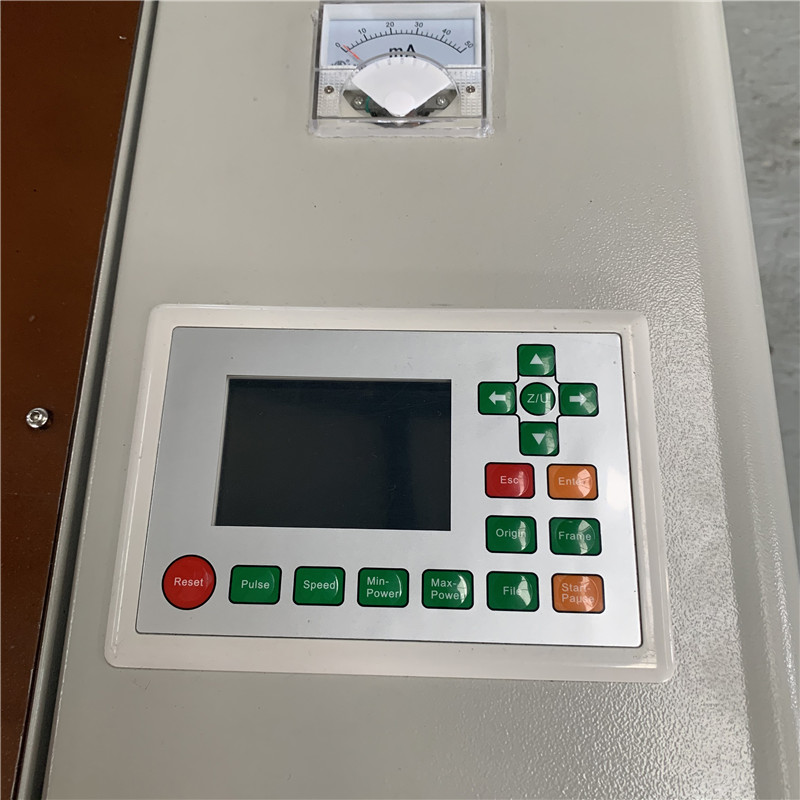

RD6442 Controller(RD6445 is optional)

Working Size: 600*900mm

Laser Power: Reci Brand W2 Tube(90-100w), other brand/power is optional

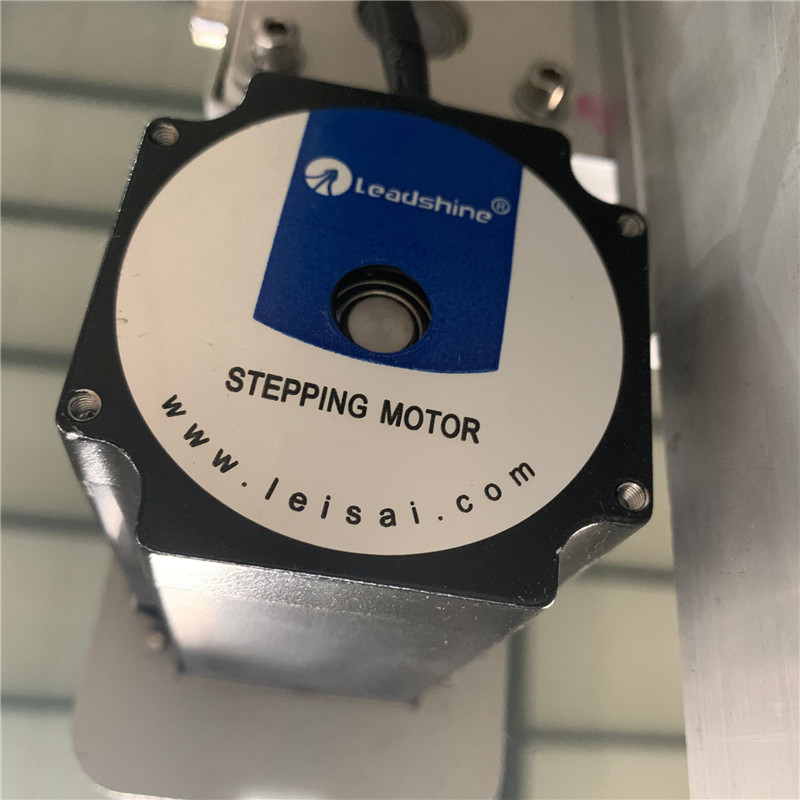

Leadshine Motor and Motor Driver

High Quality Laser Power Supply (Dy13 Model)

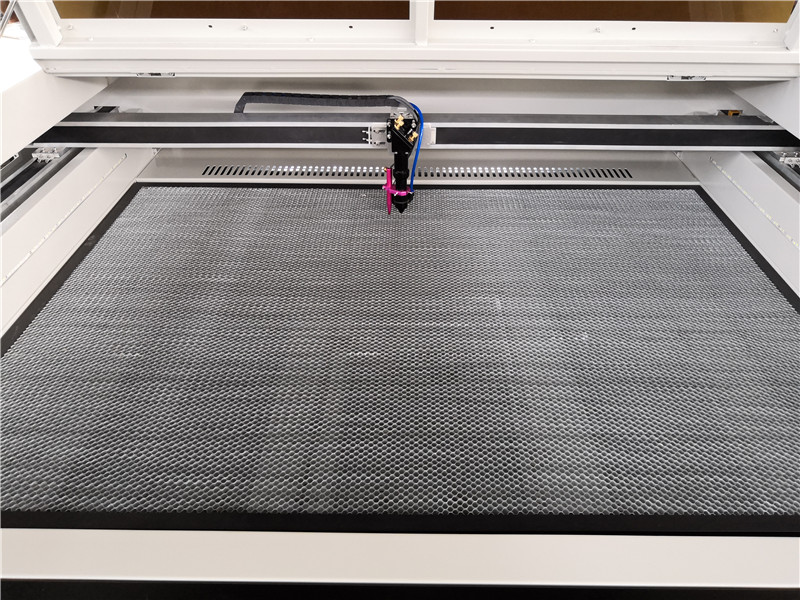

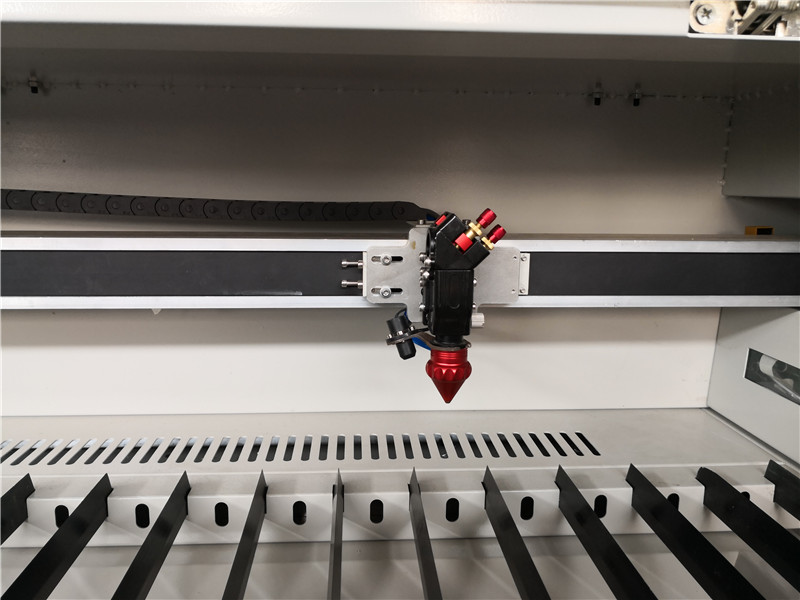

Aluminum Blade Worktable and Honeycomb Worktable (Both)

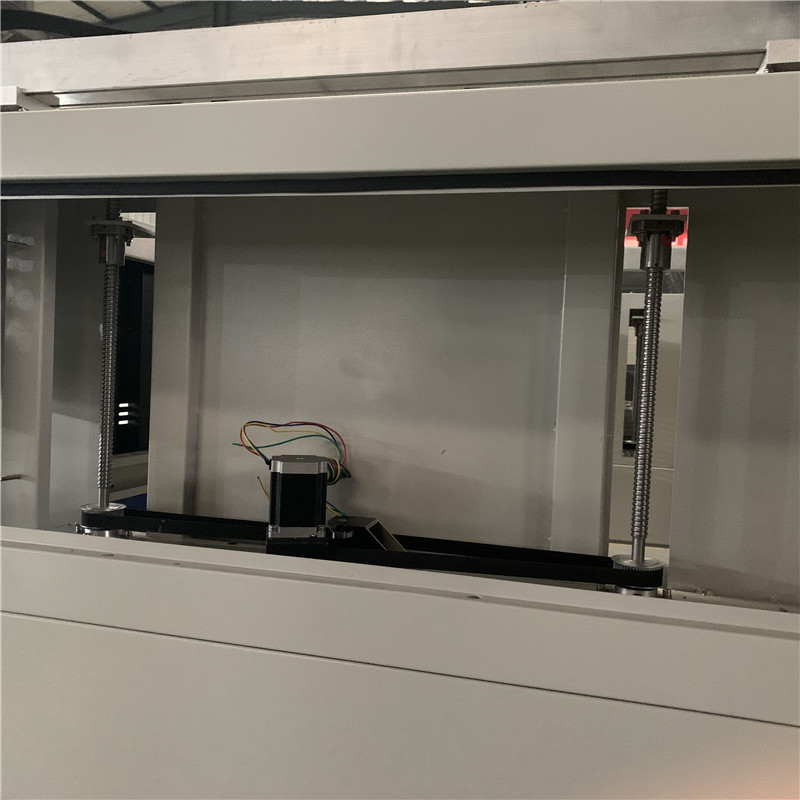

Top Quality Ball Screw Up/Down Worktable

S&A Brand CW5200 Industrial Chiller(CW3000 is optional)

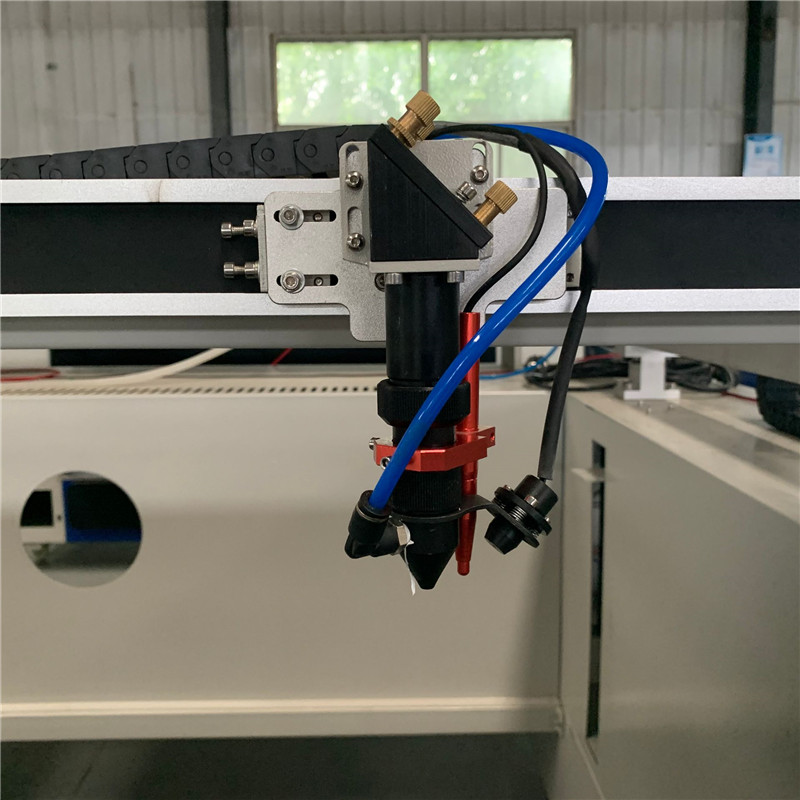

Imported Lens (Iv Ii Brand, 20mm Diameter, 50.8mm Focus Length)

Imported Mirror (25mm Diameter)

550w Exhaust Fan

Rotary (Optional)


New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
New Design HT-690 CO2 Laser Engraving And Cutting Machine
Product features

CO2 Laser Engraving And Cutting Machine Can Mark On Almost All Kinds Of  No-Metal Materials And Coated Metal, Like

Wood/Mdf/Acrylic/Rubber/Cloth/Fabric/Leather/Plastic/Pvc...It Can  Engrave Bar Code, Dimension Code, Letters, Serial Number And Photos


Product parameters

Detailed Information:

Effective Working Area

(X=900mm) *(Y=600mm) *(Z=230mm)

Laser Power

W2 Tube(90-100w) Reci Brand, Warranty for   One Year. If Damage Because Of Quality Problem, We Will Send You New Ones And   We Bear The Air Cost

Worktable:

Aluminum Blade Worktable& Honeycomb Both

Guide Rail

Hiwin 18mm Guide Rail

Driver & Motor

Leadshine Stepper Motor Driver and   Leadshine Stepper Motor

Computer System

Windows XP/Win7/Win8/10

Machine Color

Optional(white/blue is basic color)

Min Shaping Character

Character 2x2mm, Letter 1x1mm

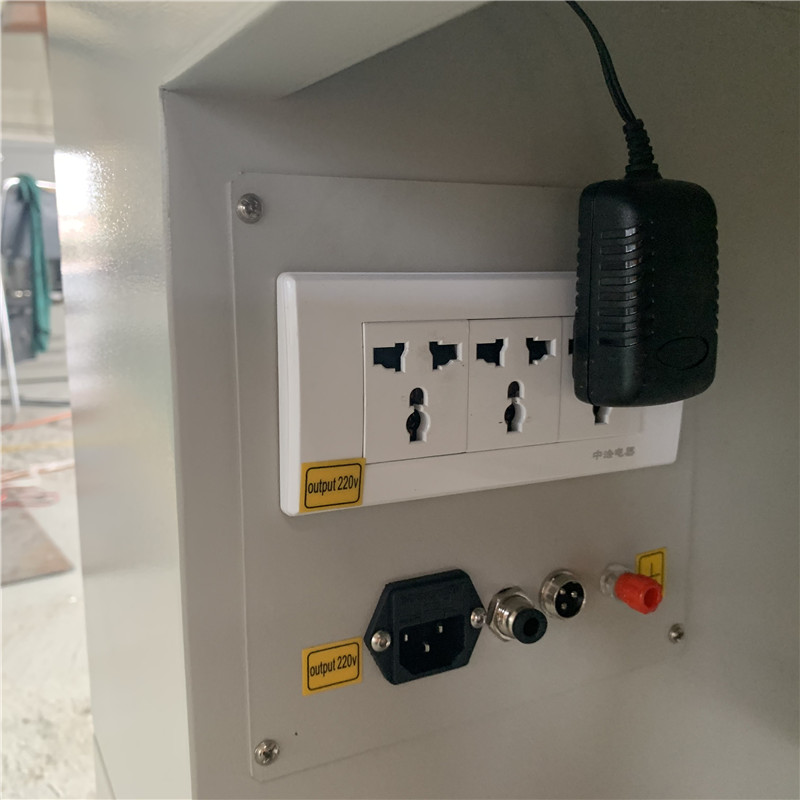

Voltage Input

110V/220V

Maxi Engrave Speed

1000mm/S

Maxi Cutting Speed

500mm/S

Data Transfer:

Ethernet (10/100m) , Usb2.0 Transmission ,   Flash Disk

Control System

DSP Ruida Controller

Graphic Format Supported:

AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Max. Power Consumption

1500w

Water Protecting Sensor and Alarm

Yes

Machine Size

1380*1030*1020mm

Package Weight

260kg

Package Size

1500*1150*1300mm
