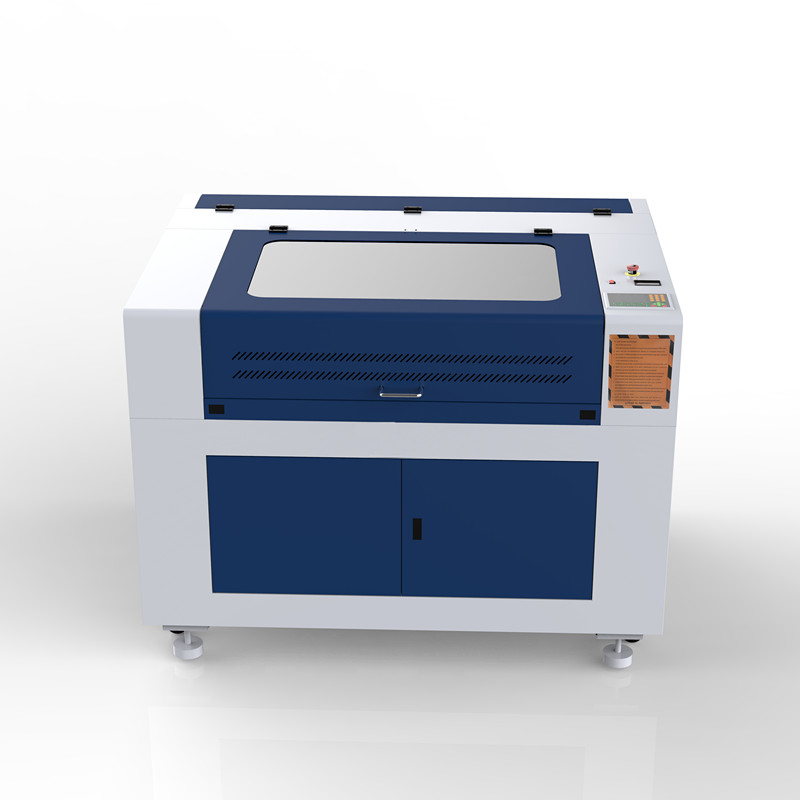

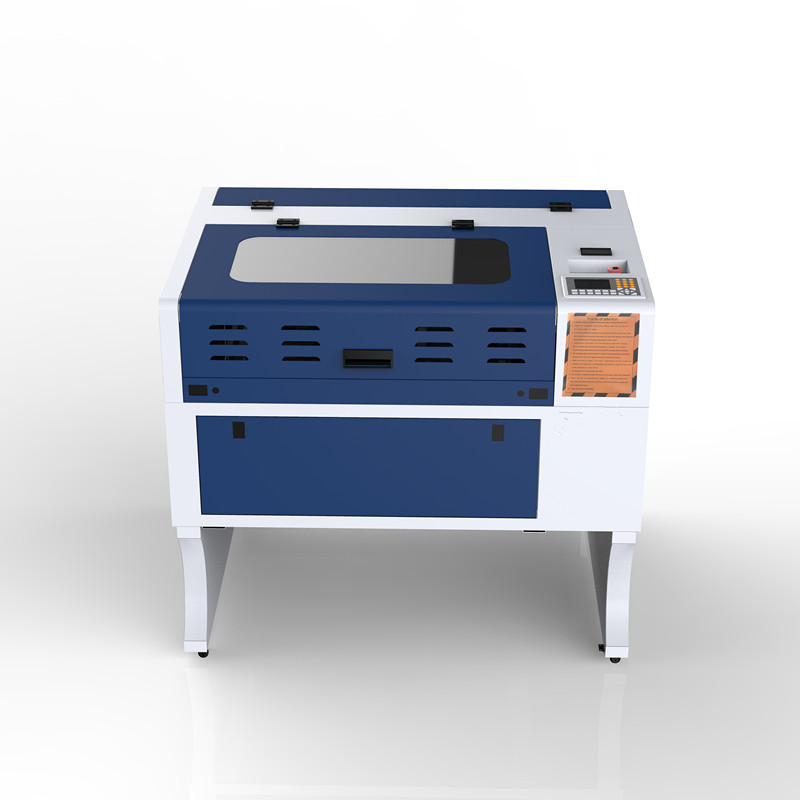

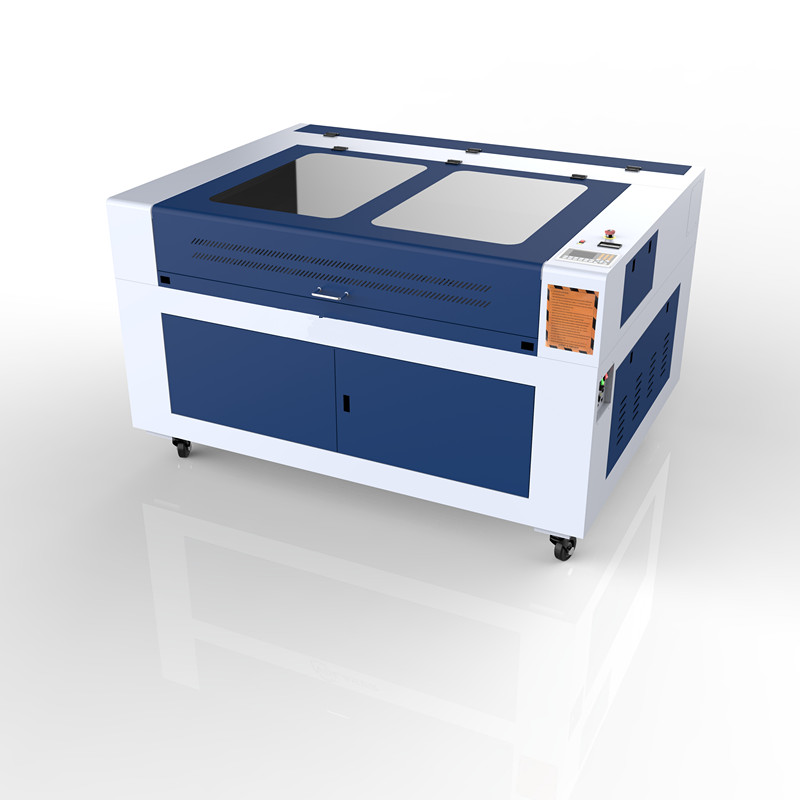

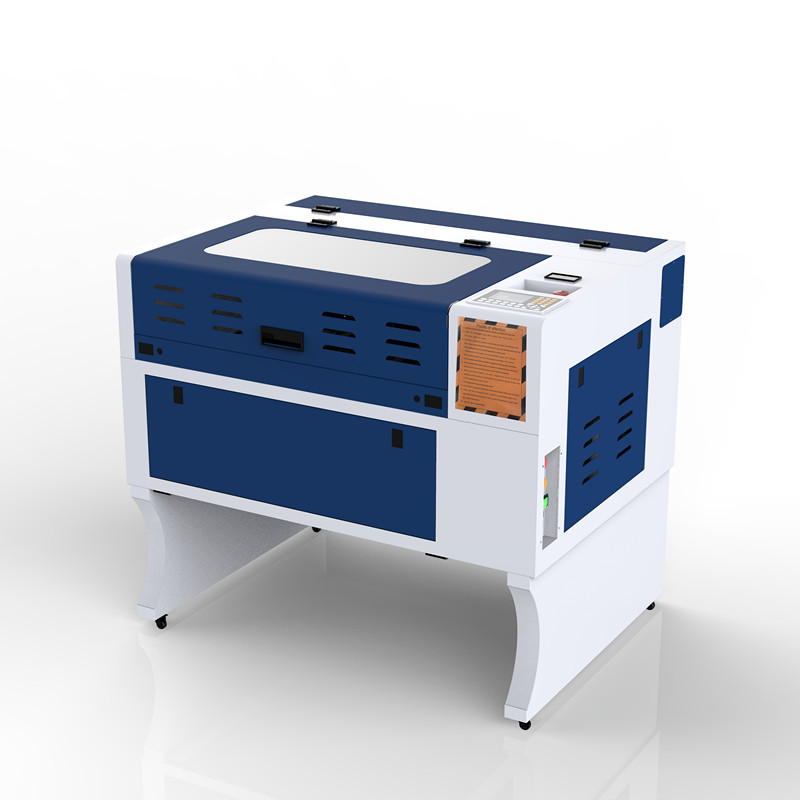

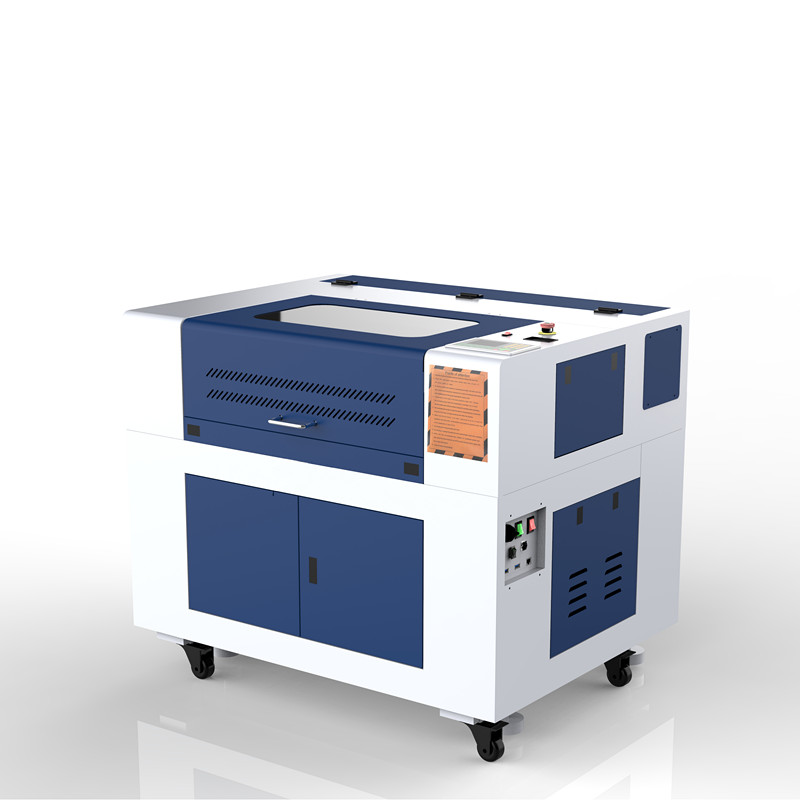

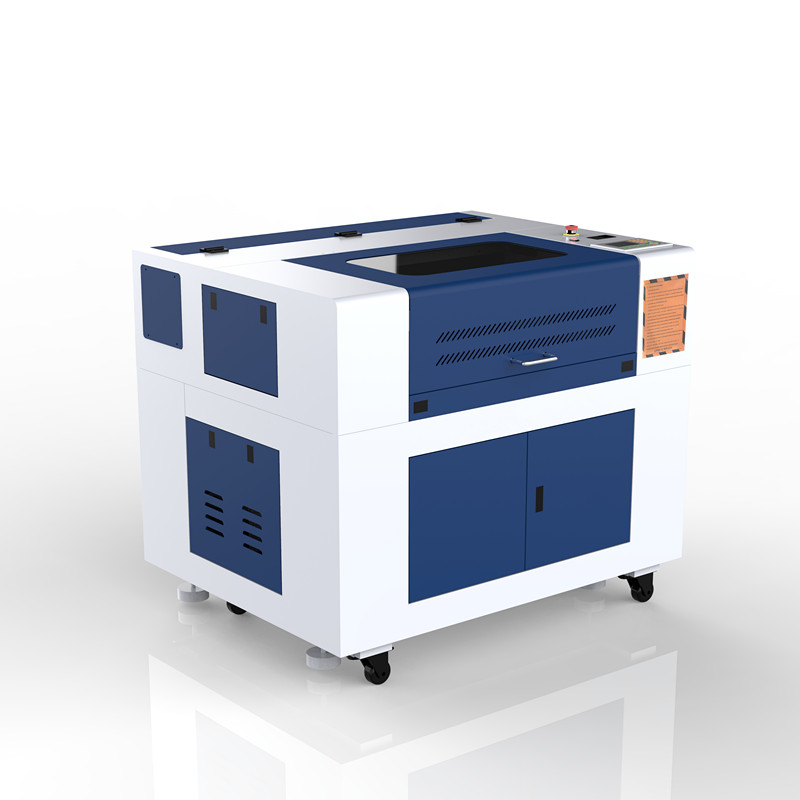

HT-690 CO2 Laser Engraving And Cutting Machine
HT-690 CO2 Laser Engraving And Cutting Machine

RD6442 Controller


Working Size: 600*900mm


Laser Power: Efr/Reci Brand


Leadshine Motor And Motor Driver


High Quality Laser Power Supply


Aluminum Blade Worktable+Honeycomb Worktable Up/Down Worktable


Cw5200 Industrial Chiller


Imported Lens


Imported Mirror


550w Exhasut Fan

Rotary(Optional)


HT-690 CO2 Laser Engraving And Cutting Machine
HT-690 CO2 Laser Engraving And Cutting Machine
HT-690 CO2 Laser Engraving And Cutting Machine
HT-690 CO2 Laser Engraving And Cutting Machine
HT-690 CO2 Laser Engraving And Cutting Machine
HT-690 CO2 Laser Engraving And Cutting Machine
Product features

CO2 Laser Engraving And Cutting Machine Can Mark On Almost All Kinds Of  No-Metal

Materials And Coated Metal, Like

Wood/Mdf/Acrylic/Rubber/Cloth/Fabric/Leather/Plastic/Pvc...It Can  Engrave Bar Code, Dimension Code, Letters, Serial Number And Photos


Product parameters



Effective Working   Area

(X=900mm)*(Y=600mm)*(Z=230mm)

Laser Power

W2 tube(90-100w)

Worktable:

Aluminum Blade   Worktable& Honeycomb

Guide Rail

HIWIN 18MM GUIDE   RAIL

Driver & Motor

Leadshine Stepper   Motor Driver and Leadshine Stepper Motor

If we use Leadshine   400W servo motor, for XY axis, we need change to ball screw, the machine cost   will US$650 more

Computer System

WINDOWS XP/Win7/Win8/10

Machine Color

Optional

Min shaping   character

Character 2x2mm   ,Letter 1x1mm

Voltage Input

110V US PLUG

Maxi Engrave Speed

1000mm/s

Maxi Cutting Speed

500mm/s

Data Transfer:

Ethernet (10/100M)   , USB2.0 transmission , Flash disk

Control System

DSP RDL6442   Controller/Leetro MPC6525A Controller

Graphic Format   Supported:

AI, PLT, DXF, BMP,   DST, DWG, LAS, DXP

Max. Power   Consumption

1500W

Water Protecting   Sensor and Alarm

Yes

Machine Size

1380*1030*1020mm

Package Weight

260KG

Package Size

1500*1150*1300mm
